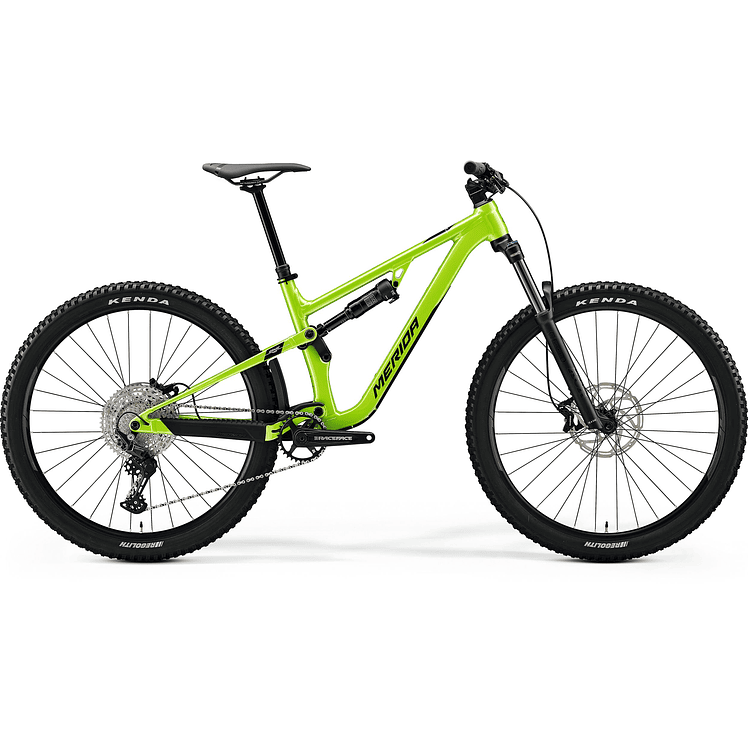

CUADRO: ONE-FORTY LITE III
143mm suspension travel 29"
material: aluminium
29x2.5" max. wheelsize
148x12mm axle standard
BSA bottom bracket standard
COLOR: METALLIC MERIDA GREEN (BLACK)
HORQUILLA: SR Suntour XCR34 DS / air
140mm suspension travel
Tapered
51mm fork offset
29x2.4" max wheelsize
SHOCK: ROCK SHOX DELUXE SELECT+ / lockout
FRENOS: Tektro HD-M745 / 4 piston
DISCO DELANTERO: Tektro TR203-35
FRENO TRASERO: Tektro HD-M745
DISCO TRASERO: Tektro TR203-35
CAMBIO: Shimano Deore M5100 Shadow+ / SGS
MANETA DELANTERA: Shimano SL -MT500-L
MANETA TRASERA: Shimano Deore M5100
PUÑOS: MERIDA COMP EC
MANILLAR: MERIDA TEAM TR
material: aluminium
780mm width
XS/S 18mm rise
M/L/XL 30mm rise
TEE: MERIDA EXPERT eTRII
material: aluminium
35mm diameter
0° stem angle
50 mm
DIRECIÓN: MERIDA 8158
PEDALIER: Race Face BSA 68/73 – 24mm
TAMAÑO DE BIELAS: Race Face Ride
32 teeth
170 mm-S, 175 mm-M up
CASETE: Shimano Deore M5100
11-51 teeth
11 speed
CADENA: KMC X11
TIJA: MERIDA EXPERT TR II
34.9mm diameter
0mm setback
XS: 125mm travel seatpost - S: 150mm travel seatpost - M/L/XL: 200mm travel seatpost
SILLIN: MERIDA COMP SL / V-mount
LLANTA: MERIDA COMP TR
29mm inner width
material: aluminium
Tubeless ready (tubeless tape and valves not included)
RAYOS: Black stainless
BUJE DELANTERO: Shimano MT400-B
110x15mm width front hub
32 spoke holes
Centerlock
BUJE TRASERO: Shimano MT400-B
148x12mm width rear hub
32 spoke holes
Centerlock
EJE TRASERO: MERIDA COMP TR
including removeable lever, 6 allen key
NEUMÁTICOS: Kenda Regolith
29x2.4" / wire
PESO APROX: 16,88 kg
